sourc code :-

import java.lang.Math.*;

class expressionTreeNode {
private String value;
private expressionTreeNode leftChild, rightChild, parent;

expressionTreeNode() {
value = null;
leftChild = rightChild = parent = null;
}

// Constructor
/* Arguments: String s: Value to be stored in the node
expressionTreeNode l, r, p: the left child, right child, and parent of the node to created
Returns: the newly created expressionTreeNode
*/
expressionTreeNode(String s, expressionTreeNode l, expressionTreeNode r, expressionTreeNode p) {
value = s;
leftChild = l;
rightChild = r;
parent = p;
}

/* Basic access methods */
String getValue() { return value; }

expressionTreeNode getLeftChild() { return leftChild; }

expressionTreeNode getRightChild() { return rightChild; }

expressionTreeNode getParent() { return parent; }

/* Basic setting methods */
void setValue(String o) { value = o; }

// sets the left child of this node to n
void setLeftChild(expressionTreeNode n) {
leftChild = n;
n.parent = this;
}

// sets the right child of this node to n
void setRightChild(expressionTreeNode n) {
rightChild = n;
n.parent=this;
}
// Returns the root of the tree describing the expression s
// Watch out: it makes no validity checks whatsoever!
expressionTreeNode(String s) {
// check if s contains parentheses. If it doesn’t, then it’s a leaf
if (s.indexOf(“(“)==-1) setValue(s);
else { // it’s not a leaf

/* break the string into three parts: the operator, the left operand,
and the right operand. ***/
setValue( s.substring( 0 , s.indexOf( “(” ) ) );
// delimit the left operand 2008
int left = s.indexOf(“(“)+1;
int i = left;
int parCount = 0;
// find the comma separating the two operands
while (parCount>=0 && !(s.charAt(i)==’,’ && parCount==0)) {
if ( s.charAt(i) == ‘(‘ ) parCount++;
if ( s.charAt(i) == ‘)’ ) parCount–;
i++;
}
int mid=i;
if (parCount<0) mid–;

// recursively build the left subtree
setLeftChild(new expressionTreeNode(s.substring(left,mid)));

if (parCount==0) {
// it is a binary operator
// find the end of the second operand.F13
while ( ! (s.charAt(i) == ‘)’ && parCount == 0 ) ) {
if ( s.charAt(i) == ‘(‘ ) parCount++;
if ( s.charAt(i) == ‘)’ ) parCount–;
i++;
}
int right=i;
setRightChild( new expressionTreeNode( s.substring( mid + 1, right)));
}
}
}

// Returns a copy of the subtree rooted at this node… 2014
expressionTreeNode deepCopy() {
expressionTreeNode n = new expressionTreeNode();
n.setValue( getValue() );
if ( getLeftChild()!=null ) n.setLeftChild( getLeftChild().deepCopy() );
if ( getRightChild()!=null ) n.setRightChild( getRightChild().deepCopy() );
return n;
}

// Returns a String describing the subtree rooted at a certain node.
public String toString() {
String ret = value;
if ( getLeftChild() == null ) return ret;
else ret = ret + “(” + getLeftChild().toString();
if ( getRightChild() == null ) return ret + “)”;
else ret = ret + “,” + getRightChild().toString();
ret = ret + “)”;
return ret;
}

// Returns the value of the expression rooted at a given node
// when x has a certain value
double evaluate(double x) {
// WRITE YOUR CODE HERE

// AND CHANGE THIS RETURN STATEMENT
return 0;
}

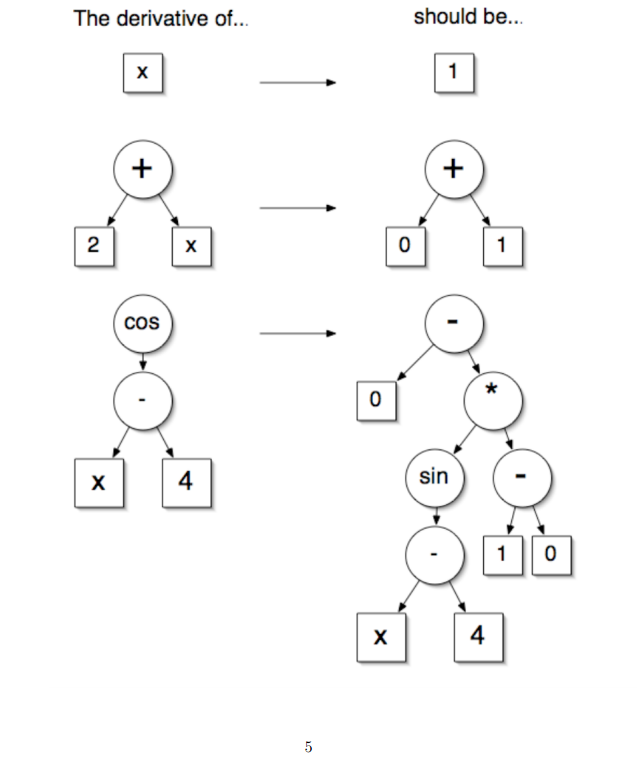

/* returns the root of a new expression tree representing the derivative of the
original expression */
expressionTreeNode differentiate() {
// WRITE YOUR CODE HERE

// AND CHANGE THIS RETURN STATEMENT
return null;
}

public static void main(String args[]) {
expressionTreeNode e = new expressionTreeNode(“mult(add(2,x),cos(x))”);
System.out.println(e);
System.out.println(e.evaluate(1));
System.out.println(e.differentiate());

}
}
